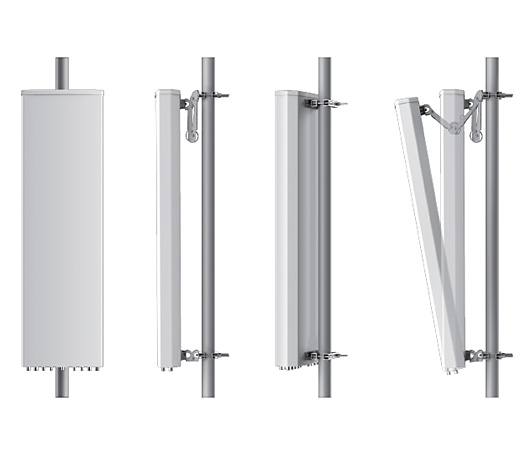

Multi Port Antenna (16 port)
Features
817~869 MHz, 1850~1995 MHz, 2496~8690 MHz
- Multi Array & Multi Port design
- Excellent PIMD characteristics
- Best performance in terms of ruggedness, stability, UV resistance, and weather protection
- AISG based Portable Multi-function Controller.
- Embedded full AISG master function & intelligent IT technology.
Electrical Specification
| Product Number | ETCR - 654L12H6 | |||
|---|---|---|---|---|
| Frequency Range (MHz) | 817 ~ 869 | 1850 ~ 1995 | 2496 ~ 2690 | |
| 3 dB Beam-Width | Horizontal | 65° ± 5° | 60° ± 5° | 70° ± 5° |
| Vertical | 8° ± 1° | 5° ± 1° | 5° ± 1° | |
| Gain (dBi) | 15 ± 0.5 | 18 ± 0.5 | 18 ± 0.5 | |
| Electrical Down Tilt Range | 0° ~ 8° | 0° ~ 8° | 0° ~ 6° | |
| 1st Upper Side Lobe Suppression | > 18 dB (up to 15° EL) | > 18 dB (up to 10° EL) | > 18 dB (up to 10° EL) | |
| Front-to-Back Ratio @180 ± 15°(Total power) |
> 25 dB | > 28 dB | > 28 dB | |
| Polarization Type | ± 45° | ± 45° | ± 45° | |
| Cross-Polar Discrimination (XPD) | - 3 dB HBW | > 15 dB | > 15 dB | > 13 dB |
| ± 60° | > 10 dB | > 10 dB | > 7 dB | |
| Input Maximum CW Power (W) | 250 | 250 | 250 | |
| Impedance (Ω) | 50 | 50 | 50 | |
| VSWR | < 1.43 : 1 | < 1.43 : 1 | < 1.43 : 1 | |
| Port Isolation | Intra Array | > 26 dB | > 28 dB | > 26 dB |
| Inter Array | > 28 dB, Co Pol. | > 24 dB, Co Pol. | ||
| Inter Band | 800 MHz // 1900 MHz : > 28 dB 800 MHz // 2600 MHz : > 28 dB 1900 MHz // 2600 MHz : > 28 dB |
|||
| Passive Intermodulation, IM3 (@2 x 43 dBm) |
≤ - 110 dBm | ≤ - 110 dBm | ≤ - 105 dBm | |
| Operation temperature | - 40°C to + 55°C | |||
| Antenna Control Interface | Field Replaceable Internal RET, AISG 2.0 | |||
Electrical Specification
| Cross Pole Configuration @2600 MHz | 0.65 λ | ||
|---|---|---|---|
| Broadcasting beam | Gain, dBi | 17.5 | |
| Horizontal Beamwidth, deg | 65° ± 5° | ||
| Service beam | Boresight | Gain, dBi | 22.5 ± 0.5 |
| Horizontal BW, deg. | 20° | ||
